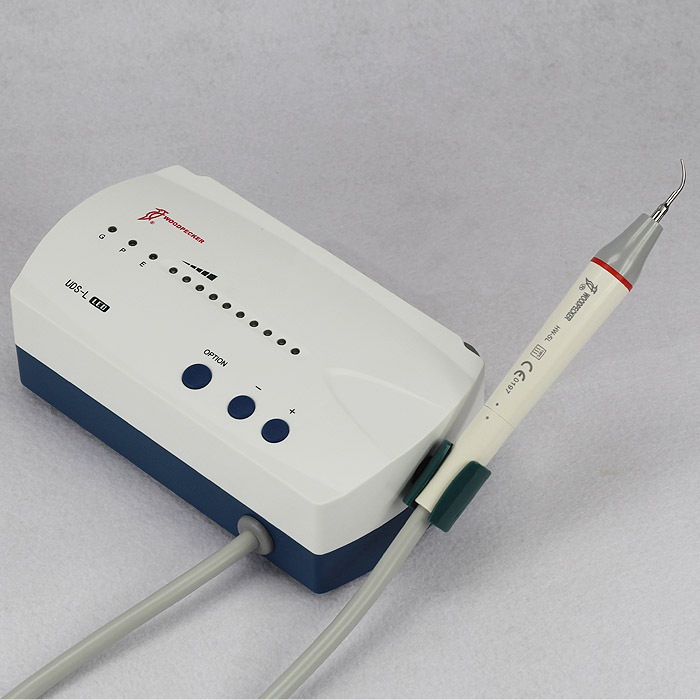

Woodpecker UDS-L Fiber Optic Ultrasonic Scaler with LED | LED Ultrasonic Scaler

Home Ultrasonic Scaler LED Ultrasonic Scaler Woodpecker UDS-L Fiber Optic Ultrasonic Scaler with LED

Goods Brief:
DELIVERY & WARRANTY

Woodpecker UDS Series Ultrasonic Scaler UDS-L LED with Water Bottle Compatible EMS Tips

Features

1. UDS-L LED has scaling, perio, automatic water supply system (optional) and endo functions

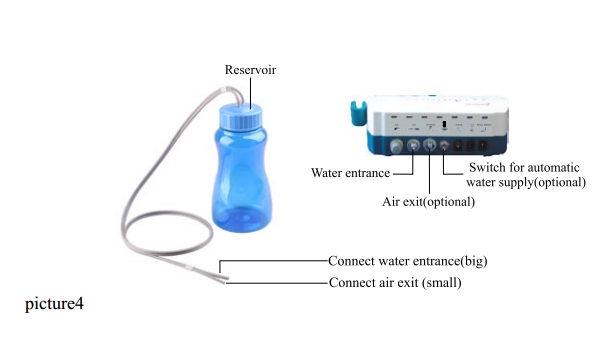

2. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily. The optional function: automatic water supply system

3. The handpiece is detachable and can be autoclaved to the high temperature of 135℃and pressure of 0.22MPa.

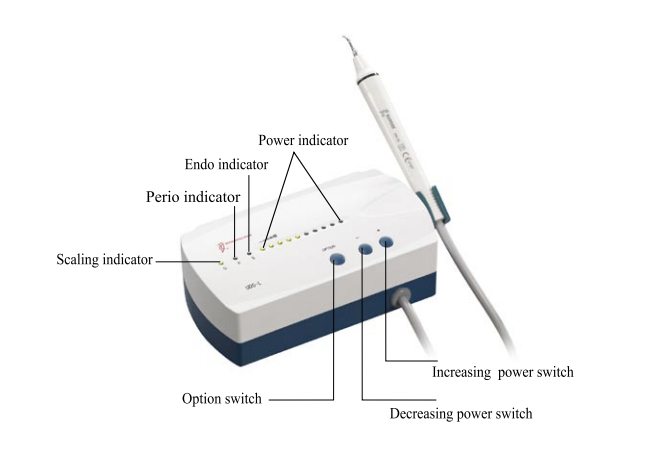

4. Digital controlled, easy operation and more efficient for scaling

5. The curing light can be used along with UDS-L, utilizing its ultrasonic power to provide electricity for the curing light. More convenient and practical

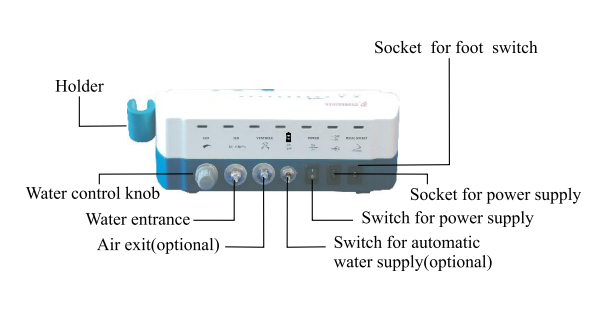

6. The scaler is composed of electrocircuit, water way and ultrasonic transducer

7. UDS-L LED is used for the dental calculus elimination and root canal treatment

Specifications

Power source input: 220 - 240V, 50Hz/60Hz, 150mA

Main unit input: 24V - 1.3A

Output primary tip vibration excursion: ≤100um

Output half-excursion force: ＜2N

Output tip vibration frequency: 28kHz ± 3kHz

Output power: 3W to 20W

Main unit fuse: T 1.6AL 250V

Power source fuse: T0.5AL 250V

Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)

Weight of main unit: 0.73kg

Weight of power source: 1.2kg

Dimension: 190mm x 125mm x 60mm

Operating mode: Continuous operation

Type of protection against electric shock: Class II

Degree of protection against electric shock: Type BF applied part

Applied part of the equipment: handpiece and tip

Degree of protection against harmful ingress of water: Ordinary equipment (IPX0), Protection degree against water (used on the foot switch): IPX1

Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air or Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide

Storage and Maintence

1. The equipment should be handled carefully and lightly. Be sure that it is far from the vibration, and is installed or kept in a cool, dry and ventilated place

2. Don't store the machine together with the articles that are combustible, poisonous, caustic, or explosive

3. This equipment should be stored in a room where the relativce humidity is ≤80%, atmospheric pressure is 50kPa to 106kPa, and the temperature is -10℃ to +50℃

4. If the machine is not used for a long time, please make it get through to the power and water once per month for five minutes

5. Environment temperature: 5℃ to 40℃

6. Relative humidity: ≤80%

7. Atmosphere pressure: 70kPa to 106kPa

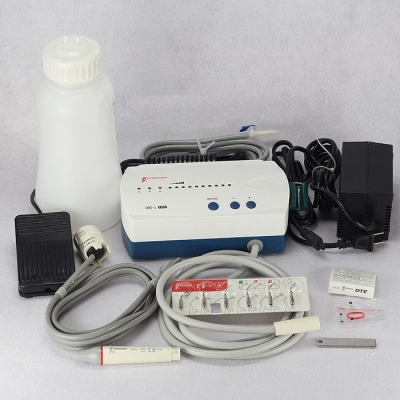

Content

1 x Main Unit

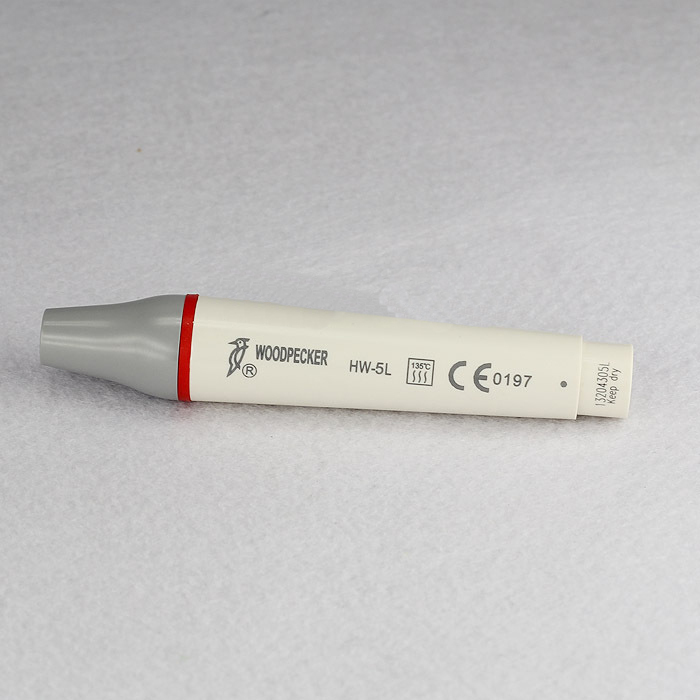

1 x LED light Detachable Handpiece

1 x Power Supply

1 x Foot switch pedal switch

Scaler Tips X 5 (G1*2, G2*1, G4*1, P1*1, )

1 x Water connecte Tube

1 x Torque Wrench

1 x Endo Wrench

1 x Handpiece Key Escucheon

4 x Waterproof O Ring

1 x Store water bottles
