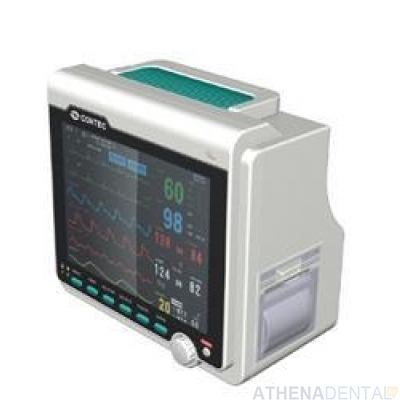

Medical Equipment 8.4 inch Patient monitor SPO2/ECG/NIBP

Features

1. 8.4” color TFT display
2. Unique digital SPO technology with excellent measurement and interference-free
3. Audible and visual alarms with adjustable alarm range
4. Anti electrosurgical interference and defibrillation
5. Can be connected with LAN to work with central monitoring system
6. Powerful data management and storage capacity
7. Suitable for adult, pediatric and neonatal patient
8. Standard configuration: ECG, NIBP, SPO2, PR, Built-in rechargeable battery
9. Optional:RESP, TEMP, 2-TEMP, 2-IBP, ETCO2, Thermal printer

Technical Specifications

ECG:

Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
Lead selection: I, II, III, avR, avL, avF, V
Waveform: 2 ch
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
HR and Alarm Range:
Adult: 15 ~ 300 bpm
Neo/Ped: 15 ~ 350 bpm
Accuracy: ±1% or ±1bpm, which great
Resolution: 1 bpm
Sensitivity: >200uV P-P
Differential Input Impedance: >5MΩ

CMRR:
Monitor: >105dB
Operation: >105dB
Diagnosis: >85dB
Electrode offset potential: 300mV
Leakage Current: <10uA
Baseline Recovery: <3s after Defi.
ECG Signal Range: 8mV(Vp-p)
Calibration Signal: 1mV (Vp-p), 5% Accuracy
ST Segment measure and alarm: -2.0 ~ +2.0 mV

NIBP:

Method: Oscillometry
Mode: Manual, Auto, STAT
Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90Min
Measuring Period in STAT Mode: 5 Min
Pulse Rate Range: 40 ~ 240 bpm
Alarm Type: SYS, DIA, MEAN
Measuring and alarm Range

Adult Mode:
SYS: 40 ~ 270 mmHg
DIA: 10 ~ 215 mmHg
MEAN: 20 ~ 235 mmHg
Pediatric Mode
SYS: 40 ~ 200 mmHg
DIA: 10 ~ 150 mmHg
MEAN: 20 ~ 165 mmHg
Neonatal Mode
SYS: 40 ~ 135 mmHg
DIA: 10 ~ 100 mmHg
MEAN: 20 ~ 110 mmHg
Resolution: 1mmHg
Over-pressure protection: YES

SPO2:

Measuring Range: 0 ~ 100%
Alarm Range: 0 ~ 100%
Resolution: 1%
Accuracy:
70% ~ 100%: 2 %
0% ~ 69%: unspecified
Actualization interval: About 1Sec.
Alarm Delay: 10 Sec.
Pulse Rate
Measuring and Alarm Range: 0~254bpm
Resolution: 1bpm
Accuracy: 2bpm
Alarm Delay: 10 Sec.
