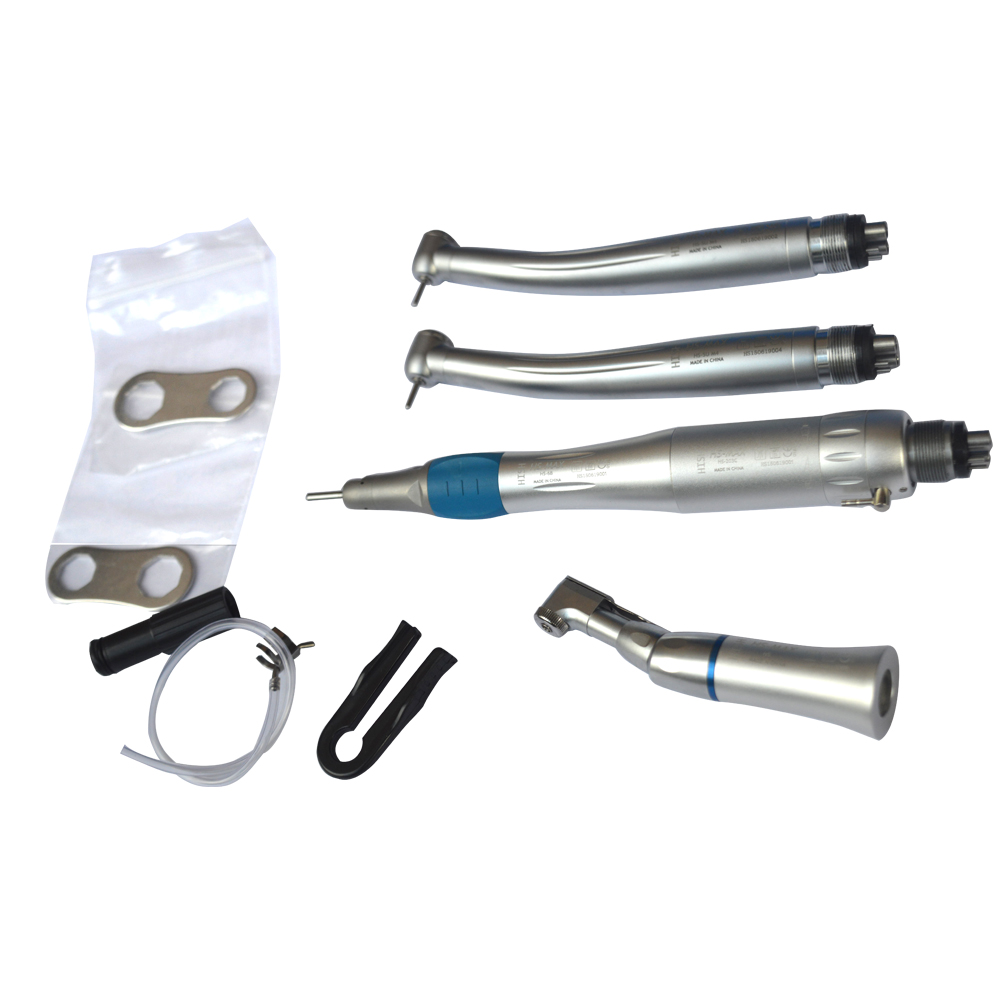

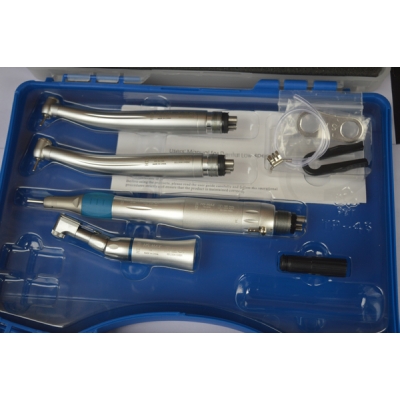

NSK MAX Dental Handpiece Unit
Features:

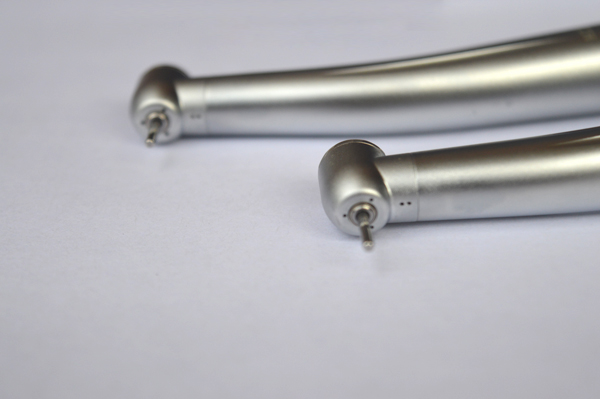

High speed handpiece :
- NSK style HISH Max high speed handpiece
- 2-Hole /4- Hole standard push button handpiece
- Single-way water spray
- It has unique appearance design and fluent outline.
- Smooth as silk, it has excellent texture.
- With people-friendly design, easy for operation.
- With best quality cartridge, easier for cleaning.
- With high-speed turbine rotation, it has better performances.
- Chucking power of chucking needle is 20N-45N.
- It is noise-free and stable.
- Applicable Bur: 1.6mm and should be conformed to ISO standard.
- Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25- 30 pressure atmosphere.
- Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.
- It is only for people who have dentistry medical qualification.
Low speed kits Features:
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

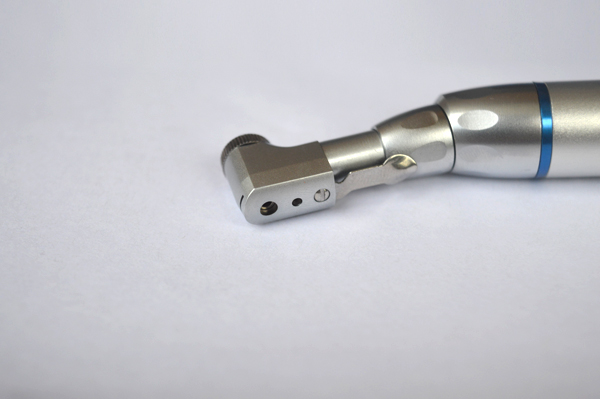

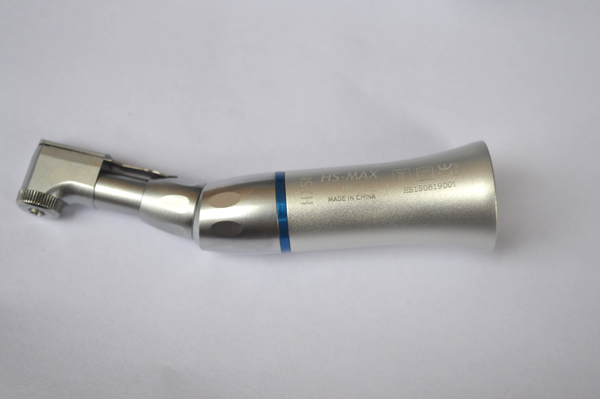

Contra angle handpiece:
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

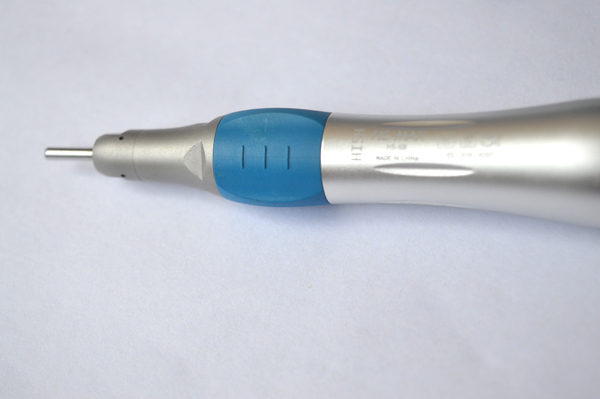

Straight Nosecone:
- Working pressure: 0.3MPa ;
- 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min

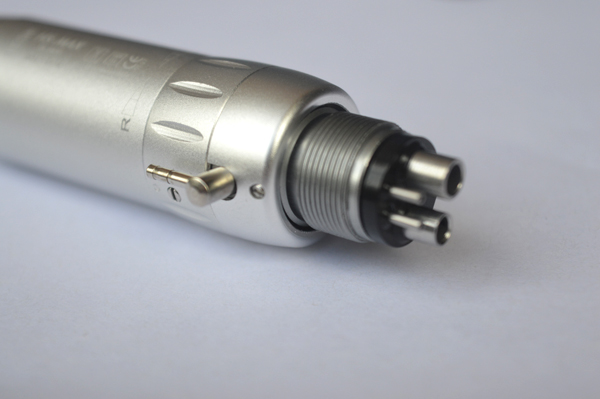

Air Motor HS-203C
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- 2 hole / 4 hole
- Max speed 20,000 min-1
